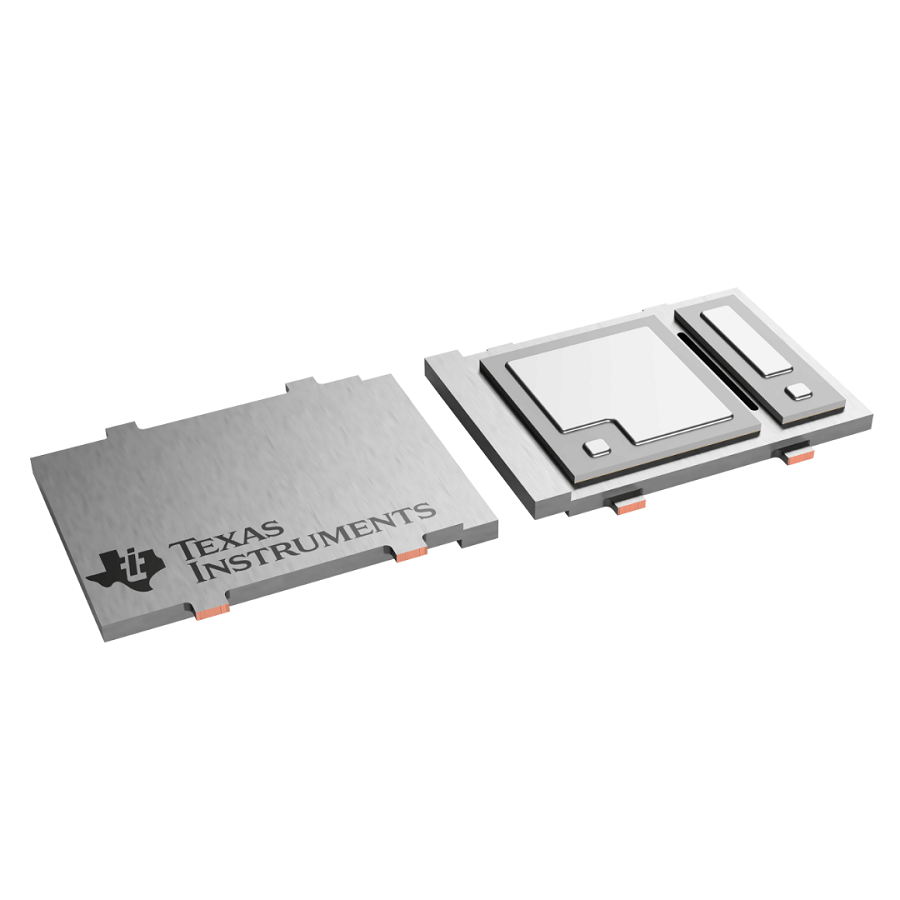

CSD87384MT
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD87384MT
Datasheet:
Description:
MOSFETs LGA-5 SMD/SMT N-Channel number of channels:2 8 W 30 V Continuous Drain Current (ID):30 A 9.2 nC, 40 nC
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 3.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Packaging | Reel |
| Thickness | 0.4 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Output Current | 1.4 A |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Power Dissipation | 8 W |
| Power Dissipation | 8 W |
| Number of Channels | 2 |
| Input capacitance | 1.15 nF |
| Continuous Drain Current (ID) | 30 A |
| Rds On Max | 7.7 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 9.2 nC, 40 nC |
| Drain to Source Resistance | 6.4 mΩ, 1.95 mΩ |
| Gate to Source Voltage (Vgs) | -8 V, 10 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 day ago) |
| Gate to Source Threshold Voltage | 1.9 V, 1.7 V |
Stock: 231
Distributors
pcbx
pcbxUnit Price$1.99027
Ext.Price$1.99027
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.99027 | $1.99027 |
| 10 | $1.28923 | $12.89230 |
| 25 | $1.16230 | $29.05750 |
| 50 | $1.04786 | $52.39300 |
| 100 | $0.94470 | $94.47000 |
| 300 | $0.86667 | $260.00100 |
| 500 | $0.79509 | $397.54500 |
| 1000 | $0.67625 | $676.25000 |
